surrounTec™

A dual-active reference studio monitor for large regies and demanding mastering studios. Neutral, ultra-precise and fast, handmade in Germany.

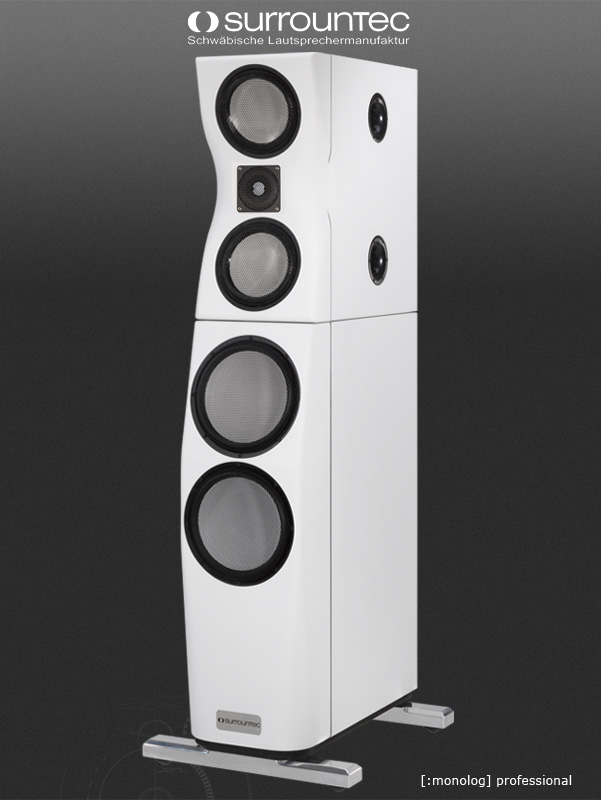

Dual-active High-End studio monitor [:monolog] from SurrounTec™ - The Swabian loudspeaker manufactory

Zitat von Fritz Fey, Studio Magazin 10/06

"Mit dem [:monolog]-System gibt uns der Hersteller surrounTec ein untrügliches Arbeitsmittel in die Hand, das man ohne schlechtes Gewissen als Abhörreferenz bezeichnen darf. [...] Dieses Produkt muss den Vergleich mit den feinsten Mastering-Abhörsystemen des Weltmarktes in keinster Weise scheuen. Dieser Studiomonitor sucht seinesgleichen."

Specification

Model	[:monolog]
Type	3way active D’Appolito design studio monitor
Sound radiation	Up to 2dB deviation from the reference axis Horizontal: more than 45° to left & right Vertical: maximum 15° up and down
Frequency-response	Linear 40 Hz bis 40KHz +/- 2dB F3=36Hz Fmax.=> 60kHz
Cross-over frequency	[:mono] 2kHz, passiv, 1st degree [:mono] to [:log] 24dB, 100Hz (pluggable)
Sensitivity	92dB/1W/1m using 2.83V
Max. SPL	115dB/1m
Distortion factor	Until 100dB <0,1% ; 115dB = 0,3%
Impedance	4Ohm
Loudspeakerchassis & drivers	30mm Accuton ceramic or diamond tweeter 2 x 8“ Accuton ceramic midrange/bass 2 x 11“Accuton ceramic sandwich subwoofer
Input	+6dBu, symmetrical XLR
Amplification	200W analogue amplifier [:carlo] 500 Watt ClassD amplifier from Bang & Olufsen
Dimensions	310x660x1550mm (width x depth x height)
Weight	130 kg
Finish	Isoplate and cabinet in black Nextel®.
Included in delivery	Power cord: PowerCon/Schuko, length 2,5m Power cord: PowerCon/PowerCon, length 1m Link Kabel, length 1m Installation and measurement on-site
Warranty	Lifelong except burnt through voice coils

All technical specifications are subject to change without notice.

[:monolog] is our reference system for professionals: F3 = 36Hz, up to 100dB the distortion factor is below 0.1%, absolute linear frequency-response between 40Hz and 40KHz. A 3way studio monitor system without any compromises in regards to precision, level stability, bass fundament, punch and speed. Ceramic pure packed into a matrix braced cabined. Over 100Hz the D’Appolito Design [:mono] studio monitor plays with two indestructible 8“ ceramic sandwich chassis and 30mm diamond or ceramic tweeter, below 100Hz our [:log]-module with two indestructible 11” ceramic sandwich chassis takes over (the diaphragm area equates to a 15” bass!).

[:monolog]C with 30mm ceramic tweeter is a sovereign speaker which effortless plays back very loud and gentle audio. From pianissimo to Callas, Stradivari to heavy metal – not a problem. The ideal main monitoring system for any production or post-production studio. [:monolog]C and [:ipon]diamond together yield our reference mastering system.

[:monolog]HE with 30mm diamond tweeter is a diva in every sense: open and beautiful if the input is good, hard and brutal if the material not as good. The diamond version of our [:monolog] system is only recommended for high-end mastering studios or musical enthusiast with the right surrounding. To get the maximum from the [:monolog]HE speaker system one should optimize the cabling and the power supply (simply because the system is that sensitive...).

[:monolog] is characterized by the gentle music hearing and working at low volumes. You will not miss bass or physicality or high tones. The complete frequency band is available at every level. The main attributes of every [:monolog] system are unmatched stress less and effortless listening, ultra neutral and unaltered audio reproduction with precise bass without any overlay effect, close to a perfect step response, true holographic transients, broad bandwidth (F3=36 Hz – Fmax > 60.000 Hz), well-balanced and homogeneous frequency response, wide sound radiation – no matter where you move your ears, the sound impression stays the same. In mono modus there is a razor-sharp phantom middle.
